The new WARN® Tabor 12 offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The new convertible control pack looks great and allows upright or low-profile mounting configurations. A waterproof Albright® contactor provides the most reliable winch control available.
The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load. And with a 5443 kg (12,000 lbs.) capacity, the Tabor 12 is great for large trucks, SUVs, commercial vehicles, trailers, and light industrial applications.

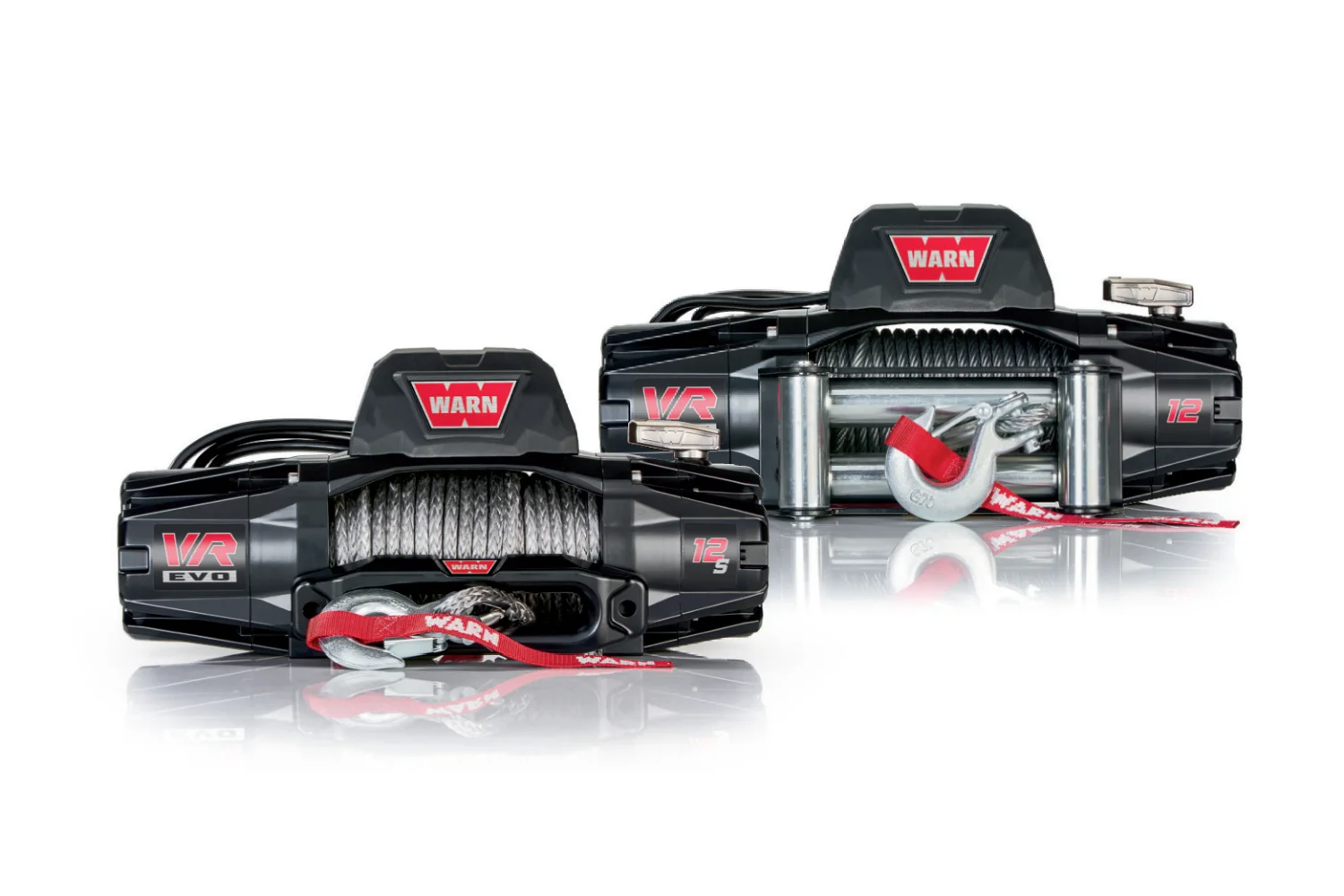

| Winch model: VR EVO 12, VR EVO 12–S |
| Part number: 103254 (VR EVO 12), 103255 (VR EVO 12–S) |
| Rated line pull: 5443 kg (12000 lbs.) |
| Motor: 12V DC, series wound |
| Electrical controls: Albright Contactor |
| Remote Control: 2-in-1 plug-in remote with wireless capability and 3.5m (11.5’) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 234:1 |
| Clutch (freespooling): Rotating ring gear clutch |
| Brake: Spring Brake |
| Drum diameter/Length: Steel and Synthetic: 6.73cm/ 23cm (2.5”/ 9.0” ) |
| Shipping Steel: 41.19 kg (90.81 lbs.) |
| Shipping Synthetic: 32.78 kg (72.27 lbs. ) |
| Net Product Steel: 33.39 kg (73.61 lbs.) |
| Net product Synthetic: 24.98 kg (55.07 lbs.) |
| Rope: Steel: 3/8”x 85’ (9.5mm x 25.9m) Synthetic: 3/8”x 90’ (9.5mm x 27.4m) |
| Fairlead: Steel: Roller, Synthetic: Die Cast Hawse |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 25mm x 2m (0.98’’ x 6.5’) |
| Finish: Powder coating over primer undercoating |
| Line Pull Kg. (Lbs.) | Line Speed M/min. (FT./min) | Motor Current | Pull by layer layer/Kg. (Lbs) |
| 0 | 8.0 (26.2) | 55 amps | 1/5443 (12000) |
| 910 (2000) | 4.2 (13.9) | 120 amps | 2/4317 (9517) |
| 1810 (4000) | 2.9 (9.5) | 178 amps | 3/3577 (7886) |
| 2720 (6000) | 2.5 (8.1) | 234 amps | 4/3054 (6732) |
| 3630 (8000) | 2.1 (6.8) | 288 amps | 5/2664 (5872) |
| 4540 (10000) | 1.5 (4.9) | 337 amps | |
| 5440 (12000) | 1.2 (4.0) | 396 amps |

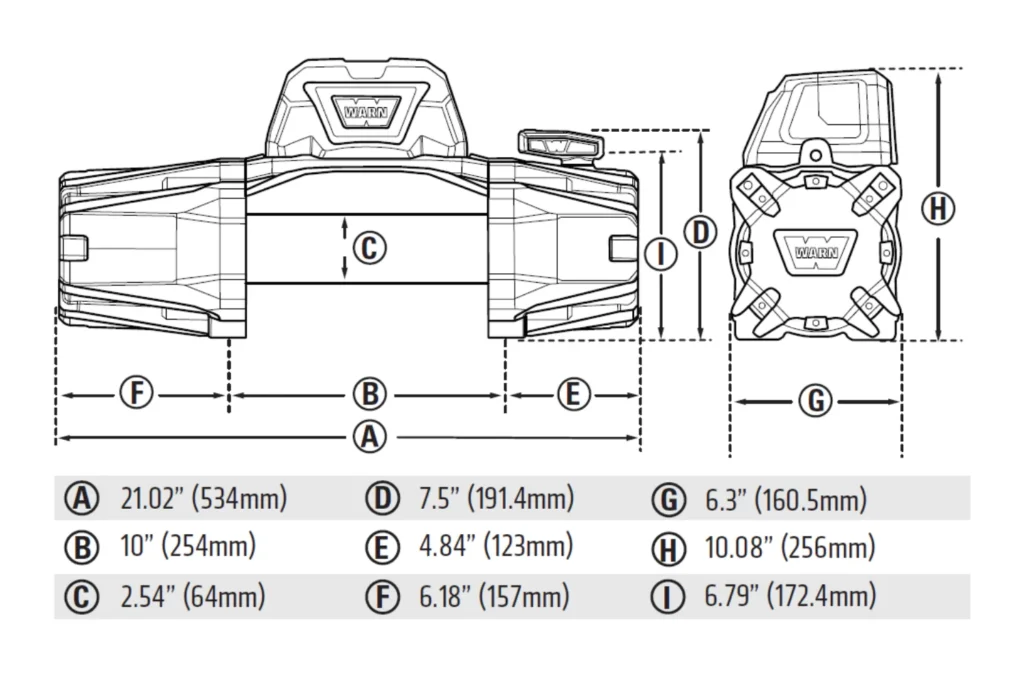

Winch Dimensions: 534mm L x 160.5mm D x 256mm H (21” L x 6.3” D x 10.1” H)
Mounting Bolt Pattern: 254mm x 114.3mm (10.0” x 4.5”)
